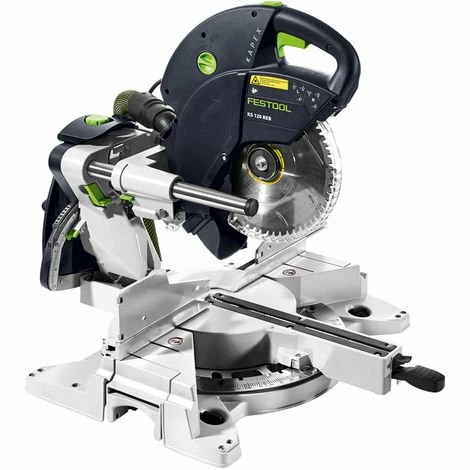

Festool KS 120 REB 260mm KAPEX Sliding Compound Mitre Saw 575304 240V

Features

• Length: 12.0
• Height: 90.0
• Diameter: 26.0
• Power: 1600.0
• Rotational speed: 3400.0
• Disc diameter, blade diameter: 26.0
• Saw type: Materials
• Eco responsibility: Connected

• Power Input- 1600W
• No Load Speed 3400rpm
• Dual-line laser
• Safety brake

Festool KS 120 REB 260mm KAPEX Sliding Compound Mitre Saw 575304 240V

Features:

Twin-column guide with two bearings for unique precision
Dual-line laser for an accurate indication of the cutting line
Fine adjustment of the saw blade angle accurate to the millimetre from the front of the machine
Special cutting position for cutting depths up to 120 mm
FastFix saw blade changing for adaptation to the working material
Twin-column guide for accurate cuts
Precision angle transfer via bevel and dual-line laser
Compact, lightweight design for convenient transportation
Safety brake

Main Applications:

Trimming skirting boards and cornices up to 120 mm in height – no calculations
Cutting boards and panels up to 305 x 88 mm
Trimming crown mouldings up to 168 mm in their original wall position
Trimming square timber and beams up to 88 mm thick

Product Specification:

Part Number: 575304
Barcode: 4014549299234
Power consumption: 1 600 W
Idle engine speed: 1 400 – 3 400 min⁻¹
Saw blade diameter: 260.00 mm
Cutting depth 90°/90°: 305 x 88 mm
Cutting depth at 45°/90°: 215 x 88 mm
Special cutting depth 90°/90°: 60 x 120 mm
Crown moulding diagonal cut 45°/90°: 168.00 mm
Inclination angle: 47/47 °
Mitre angle: 50/60 °
Dimensions (W x D x H): 713 x 500 x 470 mm
Dust extraction connection dia.: 27/36 mm
Special cut. depth 45°/90° (left): 40 x 120 mm
Special cutting depth 45°/90° (right): 20 x 120 mm
Cutting depth 50°/90° (left): 196 x 88 mm
Cutting depth 60°/90° (right): 152 x 88 mm
Cutting depth 45°/45° (left): 215 x 55 mm
Cutting depth 45°/45° (right): 215 x 35 mm
Crown moulding diagonal cut at 90°/90°: 168.00 mm
Work height: 900.00 mm
Noise and Vibration Values
Sawing: Total vibration average, Ah: 2.50 m/s²
Sawing: Uncertainty (noise) K: 3.00 dB
Sawing: A-weighted sound power level, LWA: 101.00 dB(A)
Sawing: A-weighted sound pressure level, LpA: 88.00 dB(A)
Sawing: Uncertainty (vibration) K: 1.50 m/s²
